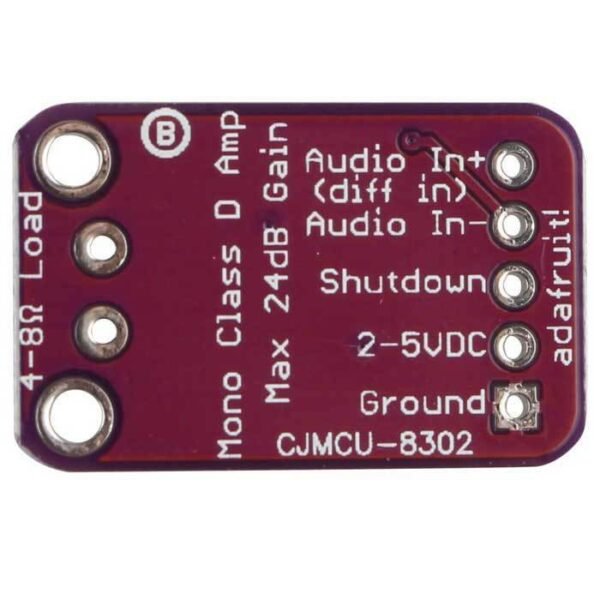

PAM8302- Mono 2.5W Class D Audio Amplifier

4.57

99 in stock

This amplifier module is similar to LM386 module. This amplifier module can be used for basic hobbyist electronic projects.

Frequently bought together

DFPlayer-mp3 module for Arduino

This is the simplest mp3 player that can be used with and without Arduino. This is an alternative solution to WTV020SD-16P. Simply plugin in a microSD card with mp3 files, connect a simple speaker, and play music.

2 x LM386 Audio Amplifier Module

This is a basic audio amplifier module for electronics hobbyists who want to build audio-related projects for fun. Simply power up the module, connect a speaker, and connect to an audio source, you will get an amplified sound.

Buy it now
Wishlist

Brands:
SKU: BC-818
You can call this as an upgrade to LM386 based audio amplifier. We are also selling speaker for this module.
This is a small but very powerful audio amplifier which is able to deliver 2.5 Watts into 4-8 ohm impedance speakers.
It is based on Class D controller circuit that can be operated with 2.0V-5.5V DC. Since the amp is a class D, its very efficient (over 90% efficient when driving an 8Ω speaker at over half a Watt) – making it compatible and perfect for portable and battery-powered projects.
It has built in thermal and over-current protection circuit as well.
There is a volume trimpot (a volume controller) so that you can adjust the volume on the board down from the default 24dB gain.
If you have been using LM386 based audio amplifier, you can call this as an upgrade.
The A+ and A- inputs of the PAM8302 amplifier go through 1.0uF capacitors which make it fully ‘differential’ – if you don’t have differential outputs, simply connect the Audio- pin  to the ground. The output is “Bridge Tied” – that means the output pins connect directly to the speaker pins, no connection to ground. The output is a high frequency 250KHz square wave PWM that is then ‘averaged out’ by the speaker coil – which makes the higher frequencies silent. You don’t need to connect to another amplifier, this module should drive the speakers directly.
Features:
  • Output Power: 2.5W at 4Ω, 10% THD, 1.5W at 8Ω, 10% THD, with 5.5V Supply
  • 50dB PSRR at 1KHz
  • Filterless design, with ferrite bead + capacitors on output.
  • Fixed 24dB gain, onboard trim potentiometer for adjusting input volume.
  • Thermal and short-circuit/over-current protection
  • Low current draw: 4mA quiescent and 1uA in shutdown mode

PAM8302A datasheet

Dimensions (without 0.1″ header):

  • 15mm x 24mm x 2mm / 0.6″ x 0.9″ x 0.08″
  • Weight: 1.4g
Package Includes: 1 x PAM8302- Mono 2.5W Class D Audio Amplifier
The package also includes a header to plug it into a breadboard and a 3.5mm screw-terminal blocks so you can easily attach/detach your speaker. Speaker is not included in this package.
