‘Scoreduino-A’ Trigger Module For Up and Down Counter Drivers

US $24.95

( 0 reviews )
  • Arduino based digital controller for up down counters and drivers
  • Programmable with FTDI basic breakout board.
  • Comes with a Bluetooth module and RF remote control.
  • Scoreduino-A communicates with display drivers via Bluetooth or RF signals.
  • It has switches for up, down, and reset commands
  • Works with SCORE1, SCORE2, and SCORE3 modules of Scoreduino app
  • Send specific numbers to displays. For example, if send 387 from the app, the displays will show the exact number.


  Ask a Question
Add to wishlist

1 user has this item in wishlist

Description

The video will show a different SCOREDUINO-A module. Both are electronically same, just the look is different.

It works with RF remote control and SCORE1, SCORE2 and SCORE3 modules of Scoreduino app.

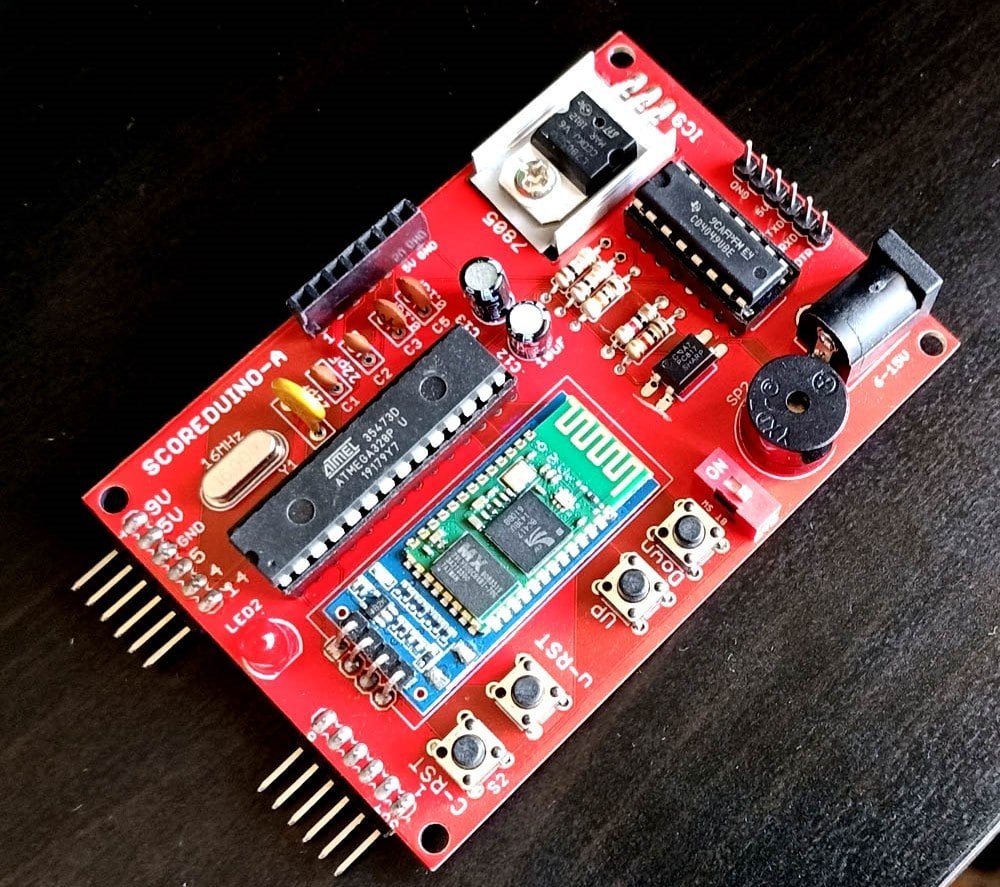

The SCOREDUINO-A’ module works as a basic controller for up and down counters or seven-segment display drivers. It has 3 switches for up, down, and reset signals. Up switch increases the count and down switch decreases the count and the reset switch resets the count to zero.

Other features:

  • It has a header for an RF module which makes it capable of receiving control signals from RF remote control.

Scoreduino is programmable like any other Arduinos. It requires an FTDI basic breakout board.

How does it work?

All seven segment display drivers are designed in such a way that this Scoreduino-A’ module fits into the female headers of the drivers. The UP, DOWN and RESET pins of the trigger module connect to pins 5, 4, and 14 respectively of the 74LS192 chip that contributes to up, down, and reset of the count.

Scoreduino works with the following common anode seven segment display drivers. The seven-segment display drivers can be controlled by a Scoreduino Android app or RF remote control or the inbuilt switches.

All the drivers are designed for COMMON ANODE seven-segment displays. It can trigger these drivers:

  1. 1.2 inch RED common anode seven segment display driver– works with 5V-6V. Works with other colors also after changing resistors.
  2. 1.8 inch RED common anode seven segment display driver– works with 5V-6V. Works with other colors all after changing resistors
  3. 2.3 inch RED common anode seven segment display driver– works with 9V. Works with other colors also after changing resistors.
  4. 3 inch RED common anode seven segment display driver– Works with 12V. Works with other colors also after changing resistors.
  5. 4 inch RED common anode seven segment display driver– Works with 12V. Works with other colors also after changing resistors.
  6. 5 inch RED common anode seven segment display driver– Works with 15V. Works with other colors also after changing resistors.

Components used:

  1. 1 x PCB
  2. 1 x Bluetooth module
  3. 1 x RF module
  4. 1 x FTDI basic
  5. 1 x 28 pin IC socket
  6. 1 x Atmega328P-PU with Arduino bootloader
  7. 4 x tactile switch
  8. 1 x 5mm LED
  9. 2 x 22pF
  10. 1 x 16Mhz oscillator
  11. 2 x 0.1uF capacitor
  12. 1 x 500mA resettable fuse
  13. 2 x 10uF capacitor
  14. 2 x 6 pin angle male header
  15. 1 x 6 pin male header for FTDI basic breakout board
  16. 1 x 1P DIP switch
  17. 1 x LM7805
  18. 1 x heat sink for LM7805
  19. 3 x 1K resistors
  20. 2 x 10K resistors
  21. 1 x PC817 optocoupler
  22. 1 x DC barrel
  23. 1 x buzzer
  24. 1 x 16 pin IC socket
  25. 1 x CD4049 chip

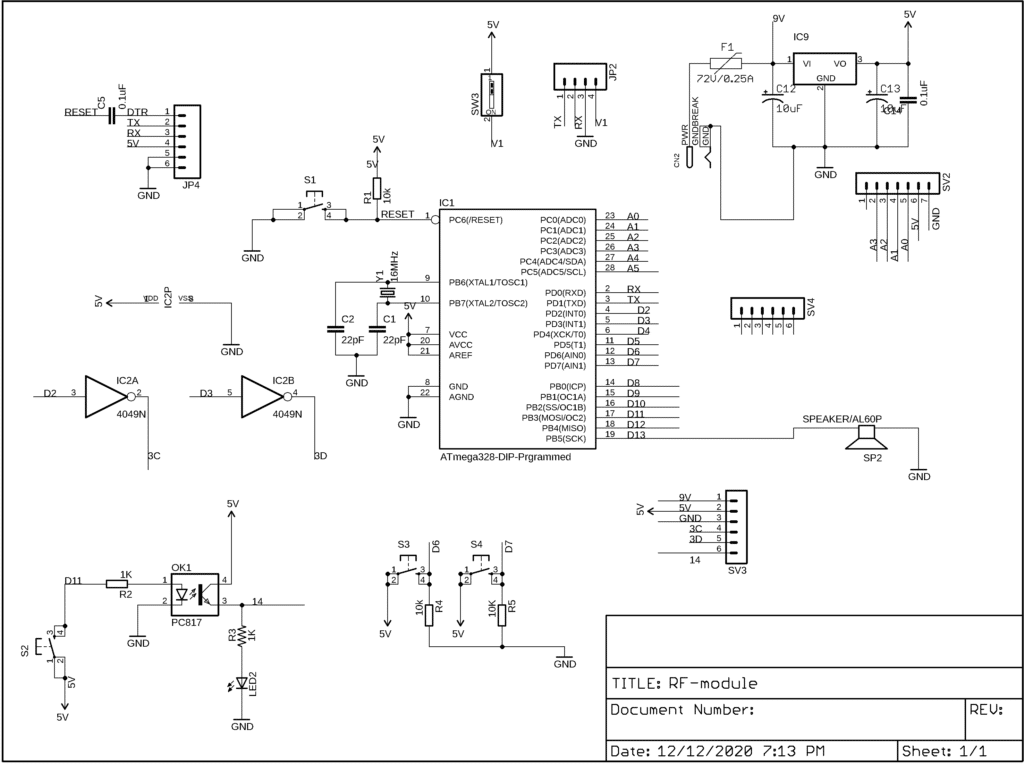

The Schematic:

It uses these two modules
