LM386 Audio amplifier DIY Kit

SKU: BCLM386 Category:

US $5.50

( 0 reviews )

7 in stock



  Ask a Question
Add to wishlist

Description

This is one of the most popular kits for beginners. You can build your own LM386 based audio amplifier. Connect this amplifier to any audio source and amplify the sound. We are also selling an assembled version of this LM386 based audio amplifier. We are also selling speakers that you would need for this project.

Package includes:

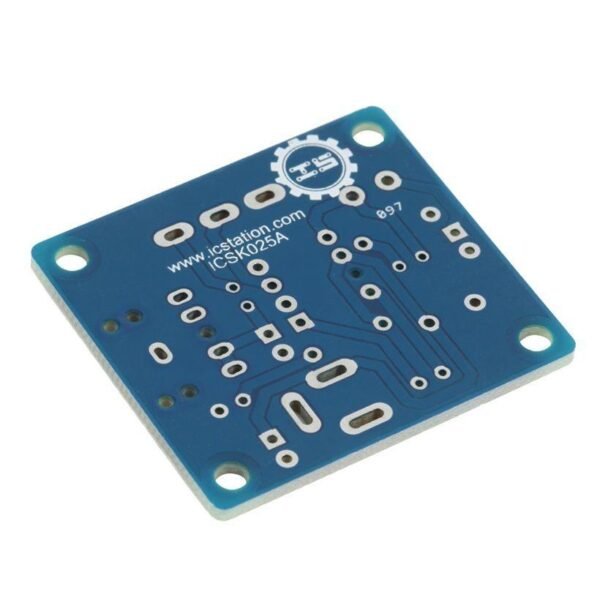

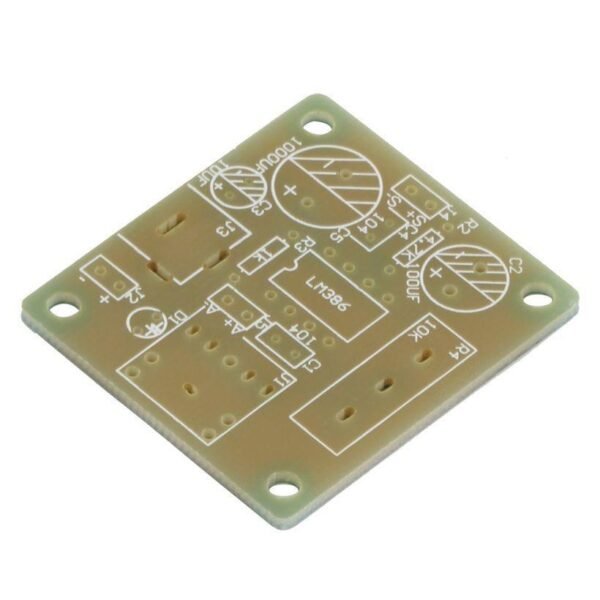

• 1 x PCB
• 1 x 10K variable resistor/potentiometer
• 1 x 6-pin header
• 1 x 1K Ohm resistor
• 1 x 4.7K ohm resistor
• 2 x 0.1uF (Code:104) ceramic capacitors

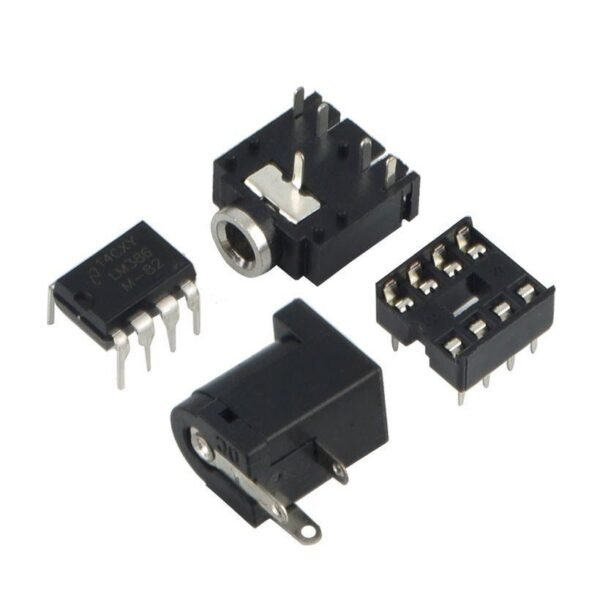

• 1 x DIP 8 pin IC socket
• 1 x LM386
• 1 x DC barrel
• 1 x 3mm LED
• 1 x 10uF Capacitor
• 1 x 100uF Capacitor
• 1 x 1000uF capacitor
• 1 x 3.5 Audio Block

Specifications:
Power supply voltage: 3V-12V
PCB size: 37x41mm
Net weight: Approx. 18g

Documents:

You can use the datasheet of LM386 to build the amplifier on your own breadboard.
