LIGHT TO AUDIO OSCILLATOR

Posted on by
Post Views: 87

Light Sensitive Audio Oscillator project is a fun-loving project which will create different sound effects depending on the light falling on the sensor

SPECIFICATIONS

  • Supply input 5 ~ 12 VDC
  • Output 8 Ohms, 0.5 W Speaker
  • Terminal pins for supply voltage and speaker connection
  • Power-On LED indicator
  • PCB dimensions 38 mm x 44 mm

SCHEMATIC

sch

PARTS LIST

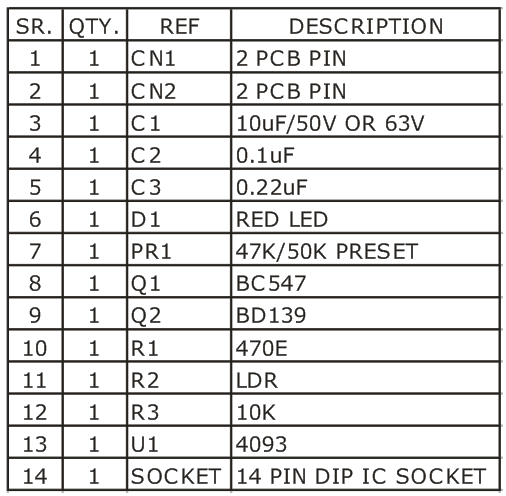

bom

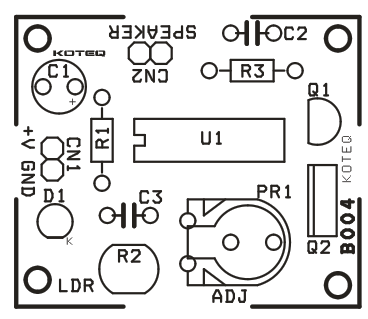

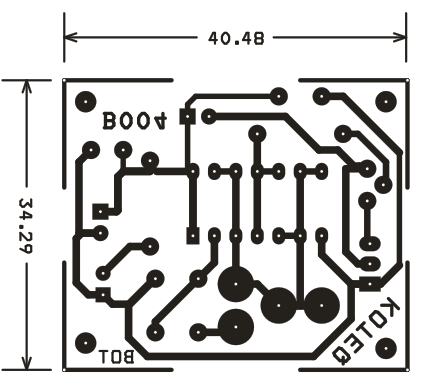

PCB
