DARK SENSITIVE SWITCH

Search Electronics Kits And Modules Available In Our Store

Dark Sensitive switch project based on single BC547 transistor, Relay operates when light that falls on the LDR, goes below a set point. It’s very simple and low cost dark sensitive switch required few components.

FEATURES

  • Input : 12 VDC @ 55 mA
  •  Relay output : NC – C – NO
  •  Onboard preset to set the level
  •  Power-On LED indicator
  •  Relay On LED indicator
  •  Screw terminal connector for easy relay output connection
  •  Four mounting holes of 3.2 mm each
  •  PCB dimensions 44 mm x 40 mm

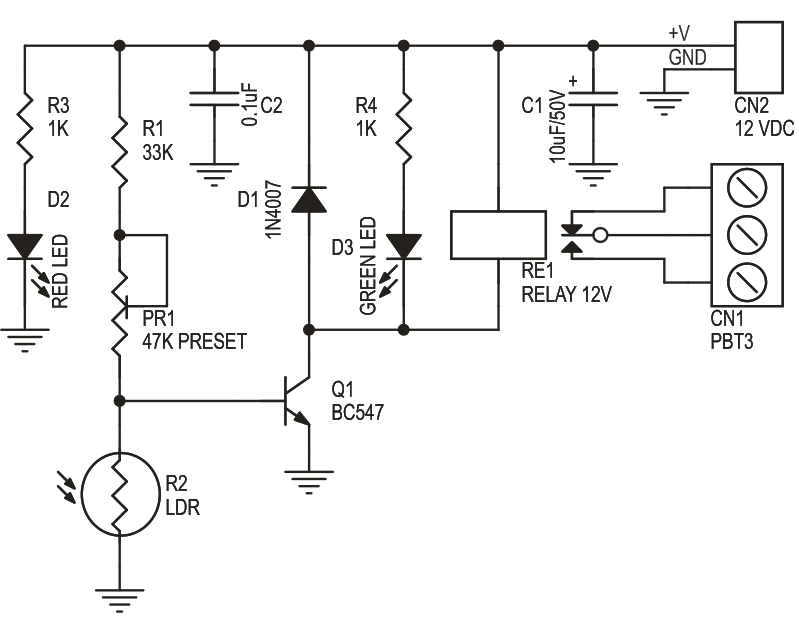

SCHEMATIC

schPARTS

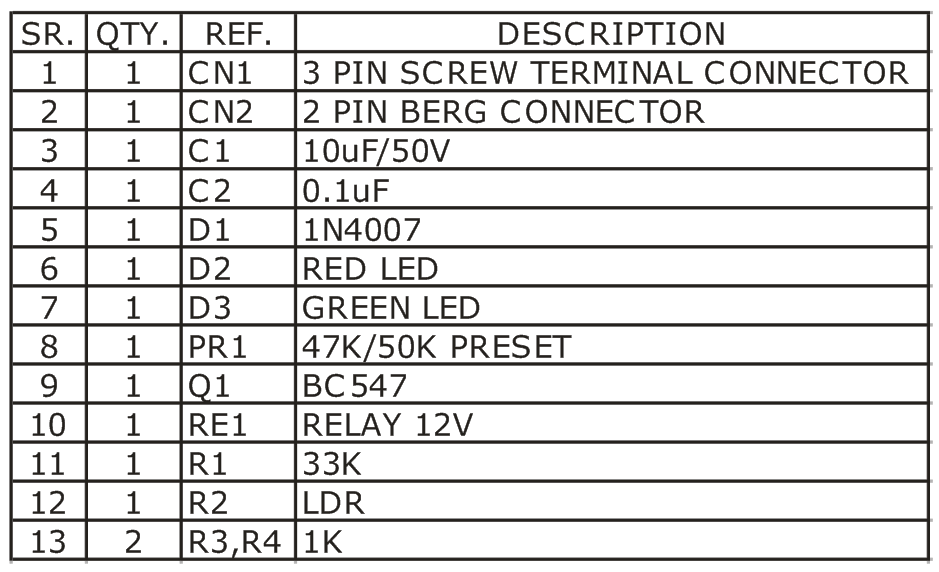

bom

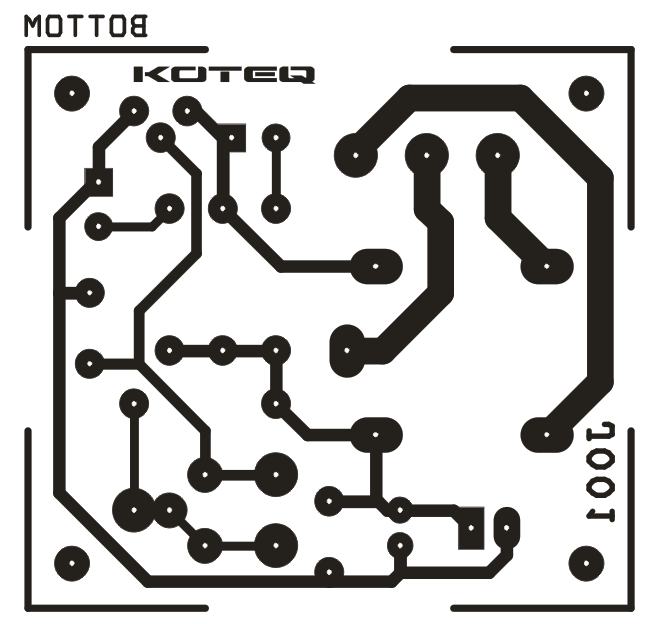

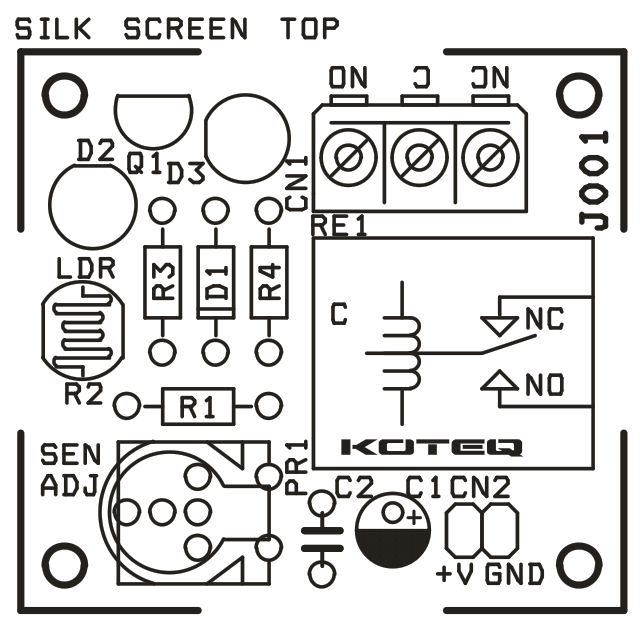

PCB
