NOW, IT IS POSSIBLE TO CONNECT A RELAY MODULE TO THIS KIT TO OPERATE APPLIANCES WORKING AT 100-240V AC.
Description: It’s a simple DIY clap switch for electronics beginners and amateurs. The circuit operates in two permanent states- ON and OFF. On the first clap, it switches on the LED and on the second clap, it switches off. This circuit can be a good start for amateurs.
Comes as a pack of parts kit and is easily assembled if you can follow the silkscreen indicators(labels) and have beginning experience with a soldering iron. You will need to read the resistor bands or use a multimeter to determine the resistor sizes.
The kit operates with a 6V-9V battery.
Kit package contains the following components:
- 2 x 4.7K resistor
- 1 x 470R resistor
- 3 x 2.2K resistor
- 1 x 470K resistor
- 1 x 1K resistor
- 1 x 47K resistor
- 5 x 10K resistor
- 2 x 1N4148 diode
- 4 x 9013 Transistor
- 1 x LED
- 3 x 0.1uF ceramic capacitor (code 104)
- 1 x 0.01uF ceramic capacitor (code 103)
- 1 x 47uF electrolytic capacitor
- 1 x 1uF electrolytic capacitor
- 1 x Electret microphone.

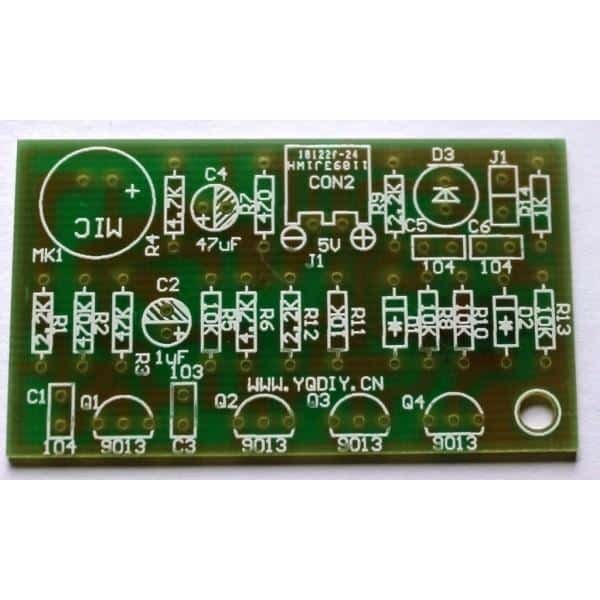

- 1 x Bare PCB with Silkscreen Indicators
- 1 x JST connector for power supply
We may send 4 color or 5 color code resistors. Click on the resistors link to see the color code.
