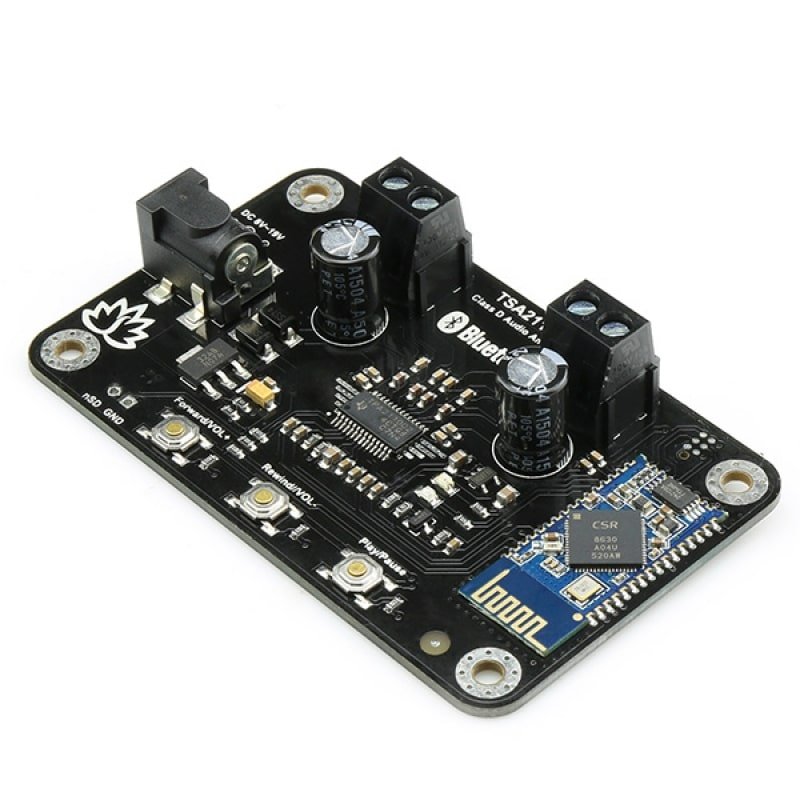

2 x 8 Watt Class D Bluetooth Audio Amplifier Board – TSA2110A

This is a 2x8W audio amplifier board integrated with Bluetooth 4.0. It has a perfect class-D architecture (based on TPA3110D2) and every channel has 8W power output. This board can be powered by any¬†DC 8V-16V power supply.¬†It can be used to drive any 4ő© or 8ő© passive speakers.

It is perfect for your Hi-Fi application, the audio source can be cable input or Bluetooth. You may pair up the amplifier with a mobile phone or a computer that has Bluetooth function.

Power up the amplifier board, use your phone or PC to search for a new Bluetooth device, the module will appear as “BT Speaker”, you can simply pair it up without PIN. Yes, it connects automatically with your device.
You can then play your audio.



Specification:

TA¬†=¬†20‚ĄÉ,¬†fIN¬†=¬†1¬†kHz¬†sine¬†wave,¬†RL¬†=¬†4ő©.¬†(Unless¬†otherwise¬†stated)

Parameter

Condition

Min

Typ

Max

Supply Voltage (V)

8

12

16

Quiescent Current (mA)

SD = 2V, No load, Vcc = 12V

20

35

Input Sensitivity (V)

Gain = 26dB

0.283

Input Impedance (Kohm)

30

Gain (dB)

26

Output Power (W rms)

THD+N = 10%, Vcc = 12V

8

Efficiency (%)

Vcc¬†=¬†12V,¬†RL¬†=¬†8ő©,¬†PO¬†=¬†5W

86

Minimum Load (ohm)

3.2

4

Frequency Response (Hz)

¬Ī3dB

20

22k

Operating¬†Temperature¬†(‚ĄÉ)

-40

20

65

Features:

  • Size: 4.8cm x 8cm
  • An external mute control port
  • Working voltage: DC 8V-16V
  • Over/under voltage protection
  • Overcurrent protection
  • Over temperature protection
  • Bluetooth 4.0

Applications:

  • Personal computer
  • Desktop amplifier
  • Microphone preamplifier
  • Home DIY
  • Vending machine, Lifts
  • Interactive kiosks
