16×2 LCD SHIELD FOR ARDUINO NANO

This 16×2 LCD shield for Arduino Nano includes various add-ons, like 5 Tactile Switches, 3 Trimmer Potentiometers, LM35 Temperature sensor and the 16×2 LCD itself. It’s a compact shield designed to fit in small enclosures and it is intended to develop measuring devices like thermometers, voltmeters, timers, up down counters and other various project requiring LCD, switches, trimmer pots etc.

Note : Trimmer Potentiometer can be replaced with Header connector to interface various sensors.

FEATURES

  • Input Supply 7-12V DC
  • 16×2 LCD Header Connector
  • 5 Vertical Mounted Push Switch
  • 3 x 5K Ohms Trimmer Potentiometers
  • LM35 Temperature Sensor
  • LCD Connected to D2,D3,D4,D5,D11,D12
  • LM35 Temperature Sensor Connected Analog- A4 of Arduino
  • Trimmer Potentiometers Connected to Analog Pin A0,A1,A2
  • Push Switch Connected to A4, D13, D8, D7, D6
  • PR1 Trimmer Potentiometer To Adjust The LCD Contrast

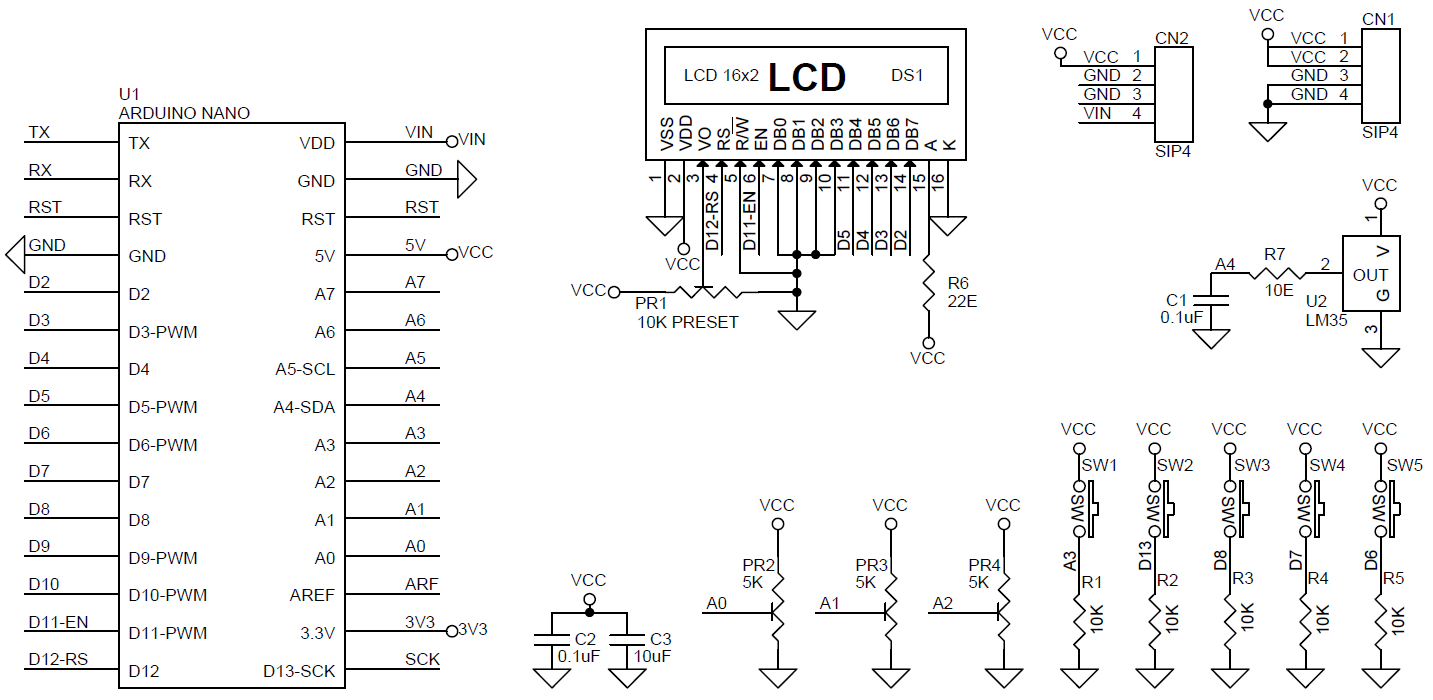

SCHEMATIC

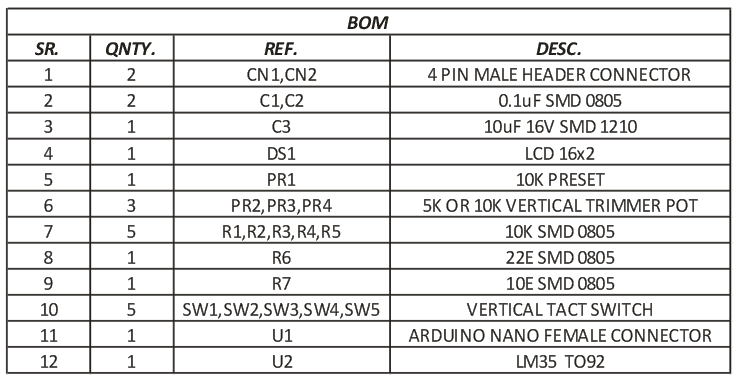

PARTS LIST

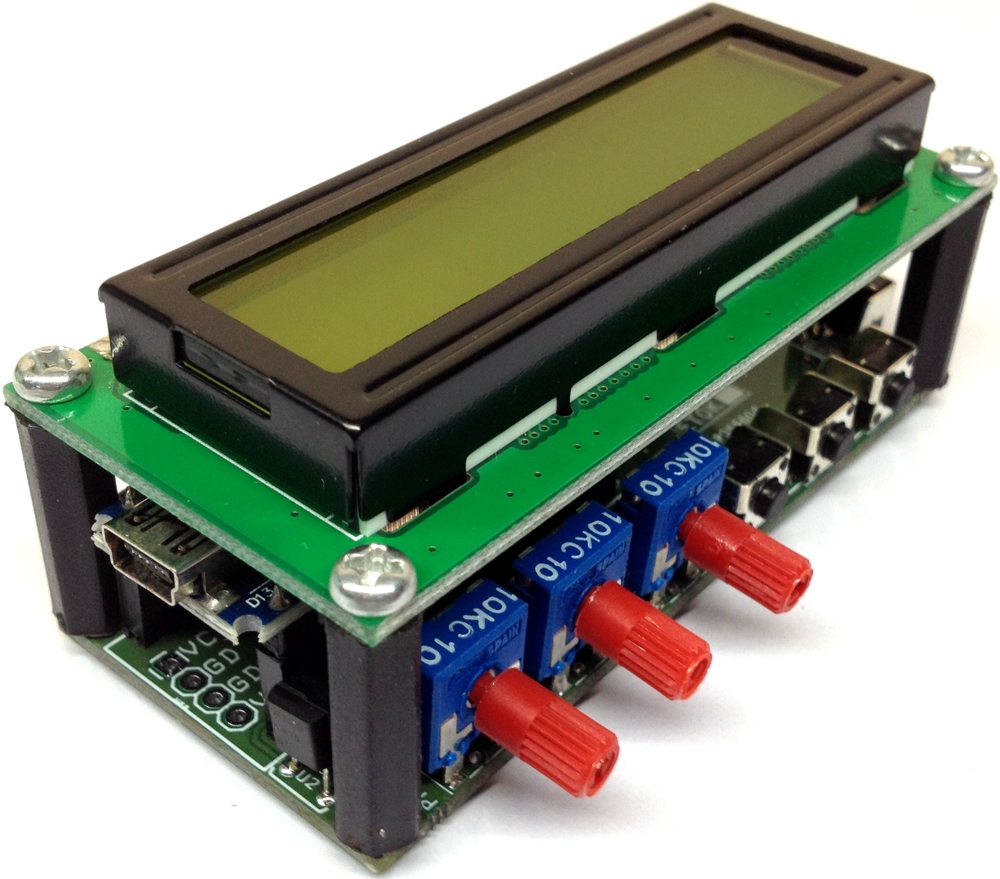

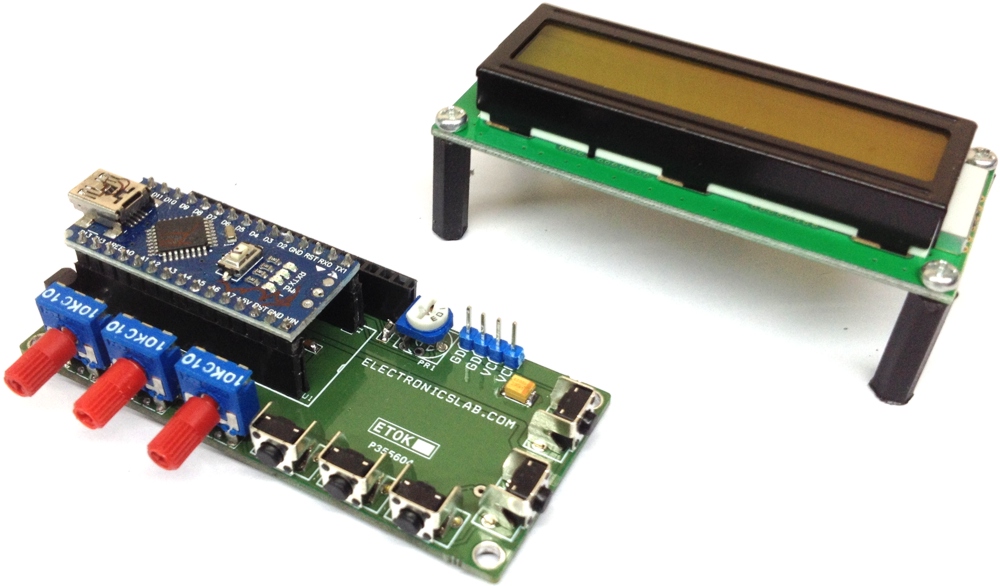

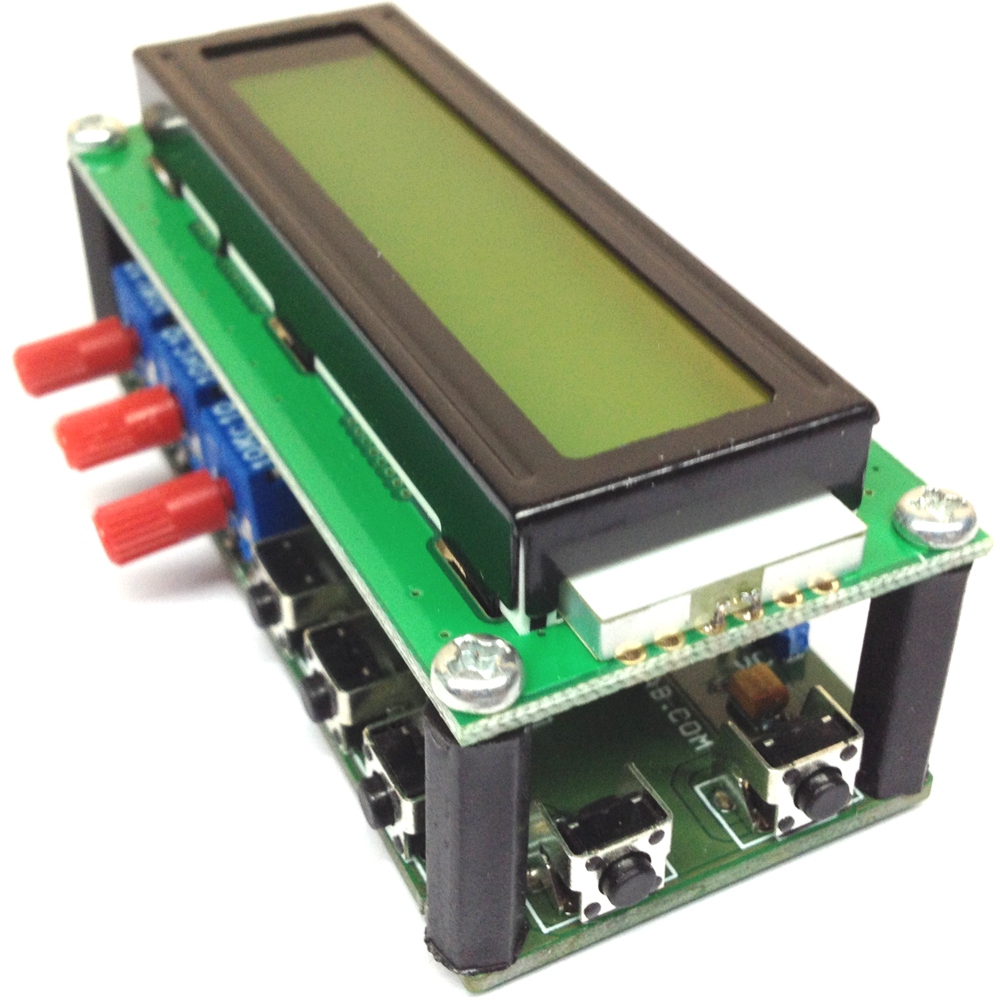

PHOTOS

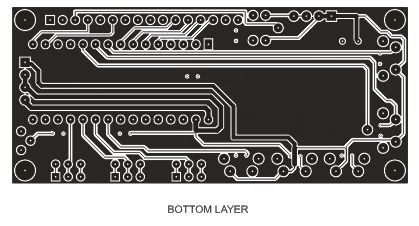

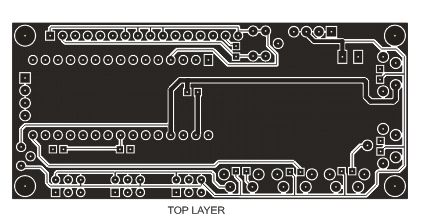

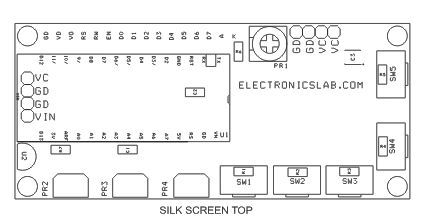

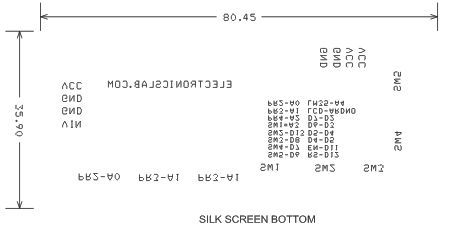

PCB
