DC SERVO MOTOR DRIVER

Search Electronics Kits And Modules Available In Our Store

DC Servo Motor Driver kit, designed using MC33030 IC, is the fastest and low cost way of getting your DC Servo Motor up and running.

  • Input – 12 VDC
  • Output – can drive upto 1 A Load
  • Overcurrent shutdown, overvoltage shutdown
  • Programmable reference input
  • Power-On LED indicator
  • Relimate connector for interfacing the kit
  • Four mounting holes of 3.2 mm each
  • PCB dimensions 45 mm x 54 mm

SCHEMATIC

schematic (1)

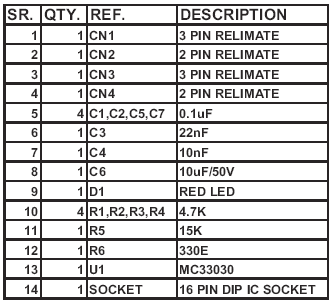

PARTS

parts

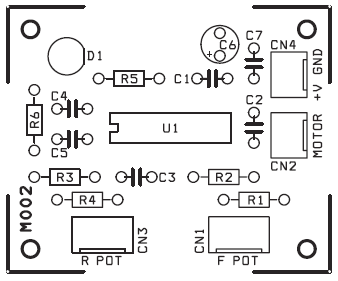

PCB
