This compact Infrared robot controller is based on Arduino Nano and L298 H-Bridge. The Nano shield can be used in various DC Motor driver applications using infra-red remote control or speed controller using trimmer potentiometer and direction control with help of slide switch.   The board can drive two small size DC-Motors with current rating up to 1A each. Board also has jumpers to drive single DC Motor up to 2A. Additional 10K trimmer potentiometer and slide switch provided for DC Motor speed and direction control. The L298 IC mounted under the PCB so board can be mounted on heat sink directly in horizontal position. Screw terminal provided to connect motors. Circuit requires 7-18V DC , close the Jumper J-5V to power up the Arduino Nano. Close J1, J2, J3, J4, J5, jumpers for single motor operations.

FEATURES

  • Motor supply: 7 to 18 VDC
  • Output DC drive to motor: up to 2 A each (Peak) for Single Motor
  • Dual DC Motor driver 1Amp each
  • On Board 5V Regulator (Close J-5V to Use On Board 5V Regulator for Nano)
  • Digital PWM Pins D6,D11 Connected to Enable A and Enable B of L298 for PWM Input
  • Digital Pin D4,D5 Connected to I1 and I2 of L298 for Motor 1 Direction Control
  • Digital Pin D9,D10 Connected to I3 and I4 of L298 for Motor 2 Direction Control
  • Infra-Red Sensor Connected to Digital Pin D13 Of Arduino Nano
  • Slide Switch Connected to Analog pin A7 Of Arduino Nano
  • Trimmer Potentiometer Connected to Analog Pin A0 of Arduino Nano
  • External Diode provided for back EMF protection
  • Screw terminal connector for easy connection to Motor
  • D1 Power LED

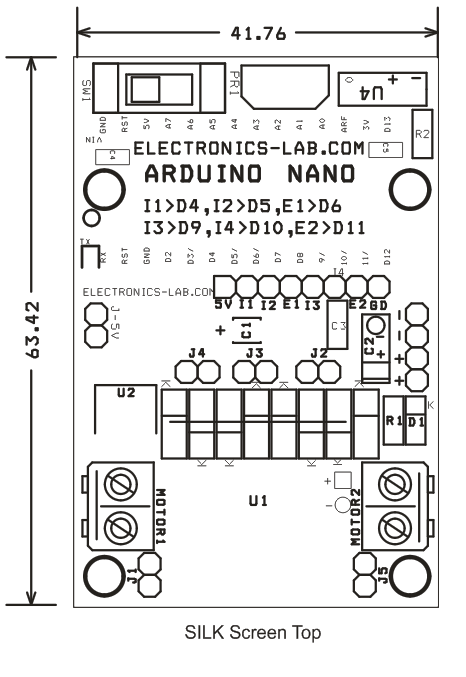

  • PCB Dimensions 63.42mm X 41.76mm

SCHEMATIC

PARTS LIST

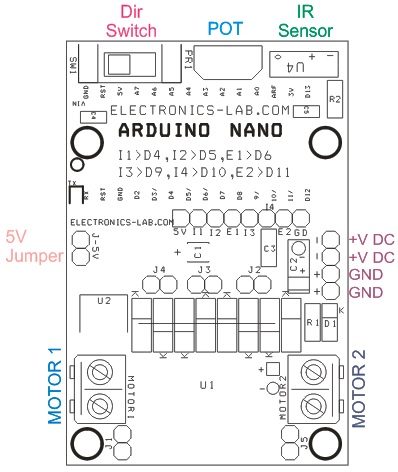

CONNECTIONS

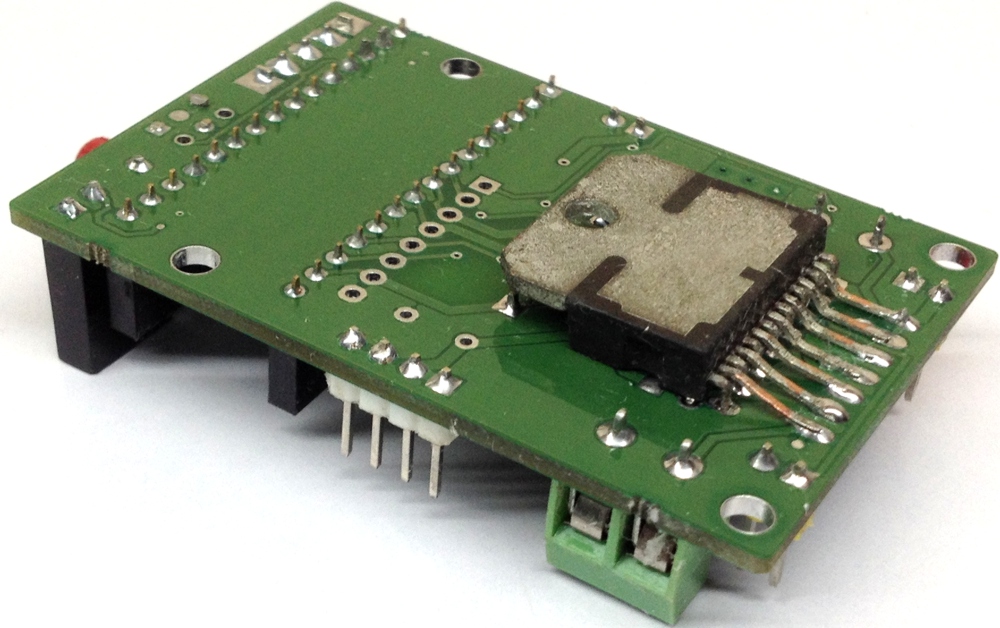

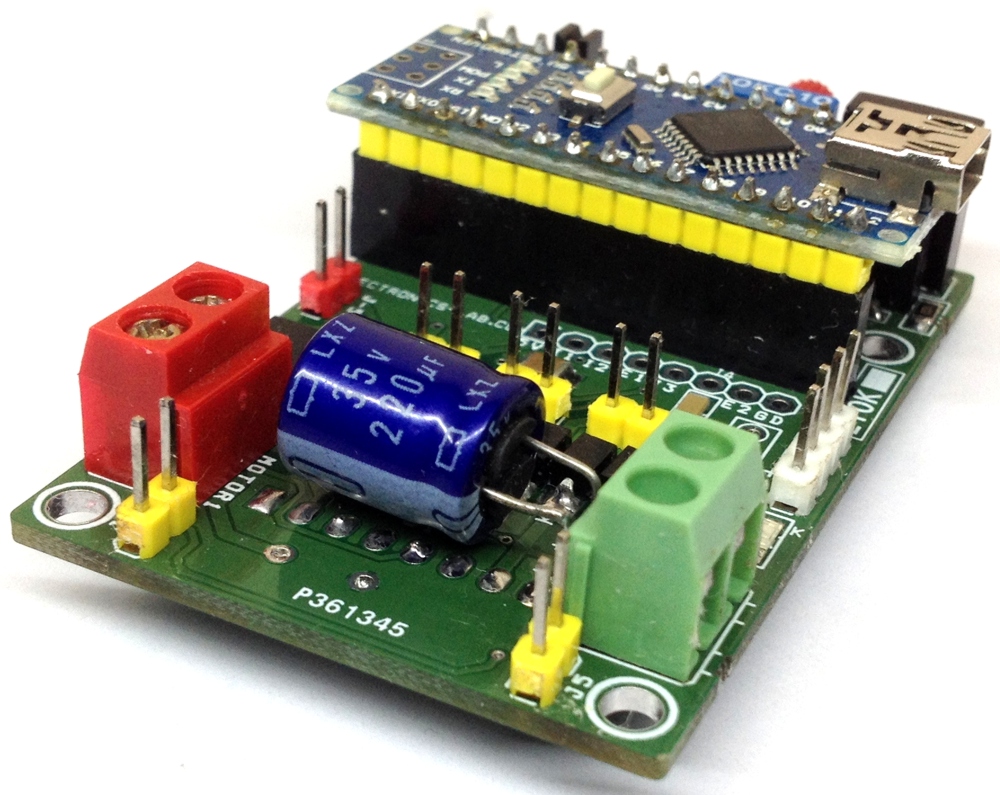

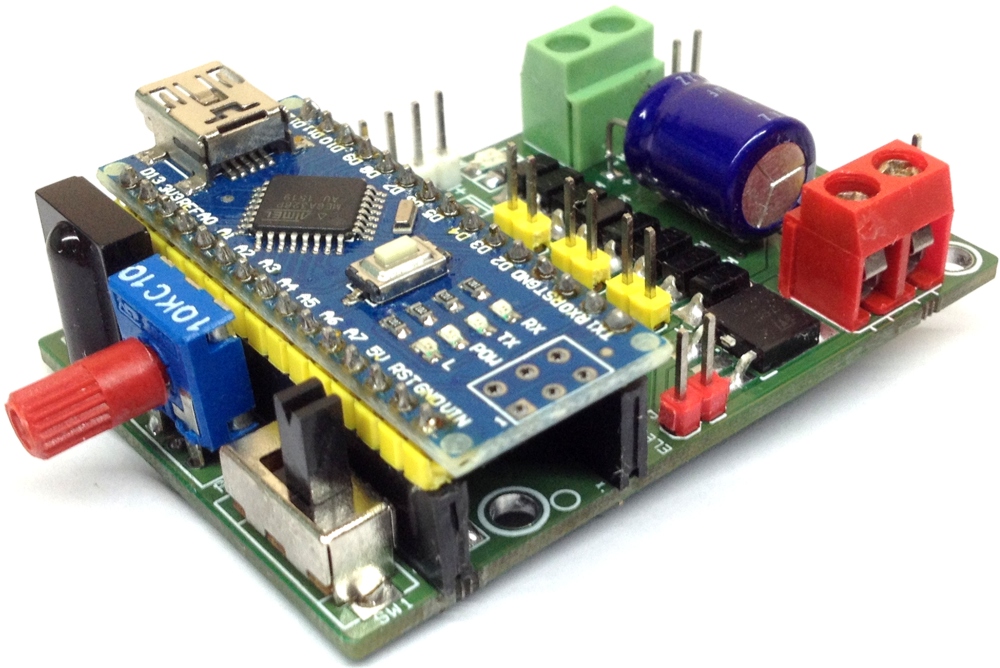

PHOTOS

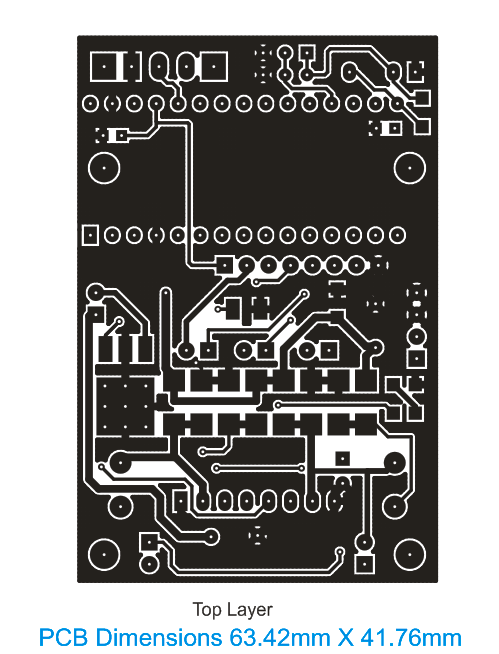

PCB
