AC SOLID STATE RELAY FOR INDUCTIVE LOAD

AC Solid state Relay for Inductive Load offers simple On/Off type Switch Control with TTL compatible input signal.

  • Input signal : 2 ~ 5 VDC, TTL compatible
  • Output : up to 500 W
  • Mains supply input 230 VAC or 110 VAC
  • Optically isolated Triac based design
  • Power Battery Terminal (PBT) and Terminal pins for easy input / output connection
  • Four mounting holes of 3.2 mm each
  • PCB dimensions 35 mm x 72 mm

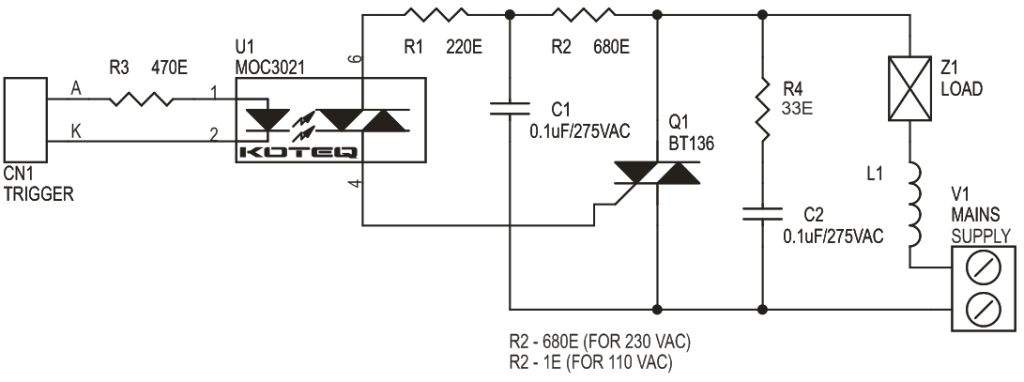

SCHEMATIC

sch

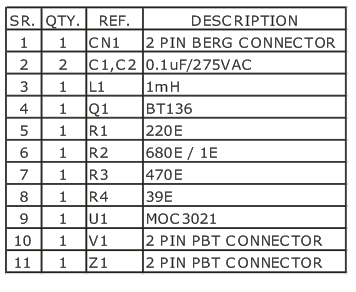

PARTS LIST

bom


M015_W

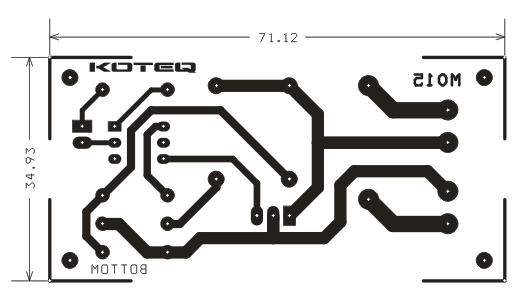

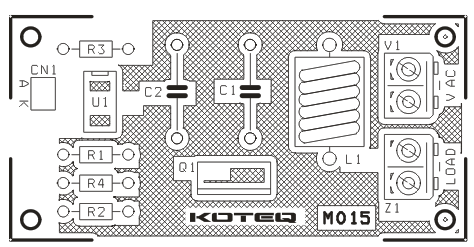

PCB
