AC SOLID STATE RELAY

Search Electronics Kits And Modules Available In Our Store

This simple circuit designed around Solid State Relay S216S02 from SHARP. The S216S02 solid State Relay (SSR) is an integration of an infrared emitting diode (IRED), a Phototraic Detector and a main output Traic. These devices are ideally suited for controlling high voltage AC loads with solid state reliability while providing 4KV isolation from input to output.

A solid-state relay (SSR) is an electronic switching device that switches on or off when a small external voltage is applied across its control terminals. SSRs consist of a opto-isolator  which responds to an appropriate input (control signal), a solid-state electronic switching device which switches power to the load circuitry, and a coupling mechanism to enable the control signal to activate this switch without mechanical parts. This relay designed to switch either AC load up-to 1KW. It serves the same function as an electromechanical relay, but has no moving parts. Solid-state relays have fast switching speeds compared with electromechanical relays, and have no physical contacts to wear out.

FEATURES

  • AC Load Upto 16Amps Peak
  • Maximum Supply input 600V AC
  • TTL Input Trigger Voltage across Anode and Cathode 3 to 6V @ 20mA
  • Input Trigger Voltage across Transistor Base 1.5V to 24V DC 5mA
  • Small PCB with on Board Snubber Circuit for inductive Load

SCHEMATIC

Solid_State_Relay_SCH

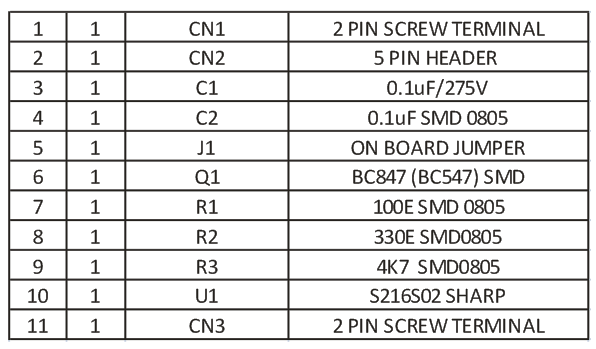

PARTS LIST

Solid_State_Relay_BOM

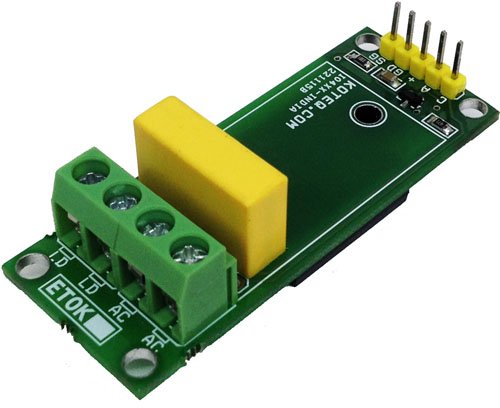

PHOTOS

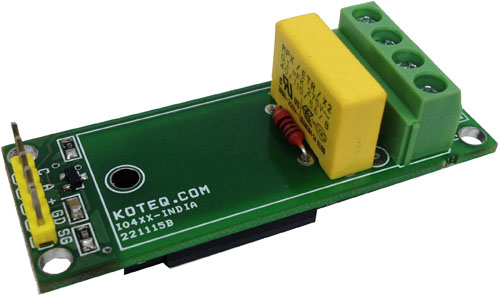

Solid_State_Relay_IMG1

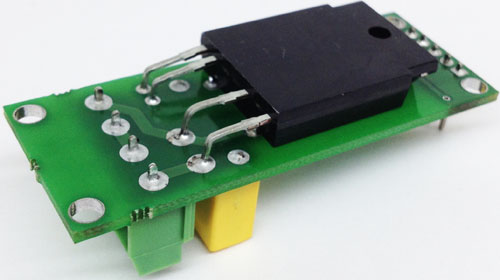

Solid_State_Relay_IMG3

VIDEO

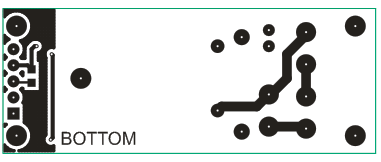

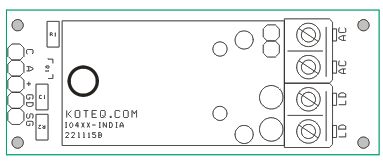

PCB
