DIY KIT 24- NE555 based piano kit

153 Views

This is a very simple NE555 based electronic kit for electronics beginners. It is a basic piano kit. I have written a similar project article before on this website. You can see it here. The kit has been built in an astable multivibrator mode. Every press of the switches results in a change in resistance in the astable multivibrator mode circuit.

The schematic of the kit:

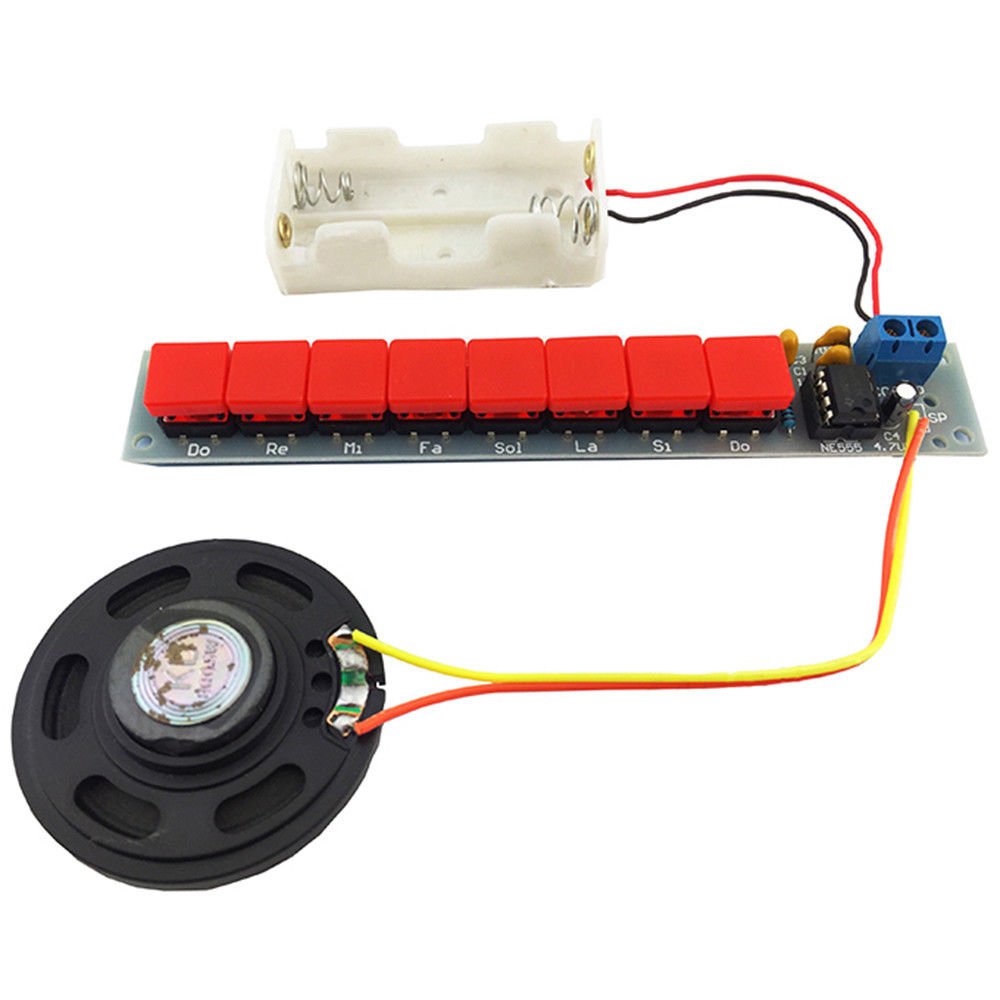

This is what you see after assembly:

You can see all the other kits images here:

See all the images below to get an idea for assembling the kit. You can see the images on Flickr also.
