2X L298 DUAL DC MOTOR DRIVER BOARD FOR ROBOTS

2XL298 H-Bridge Dual Motor driver project can control two DC motors connected to it.  The circuit is designed around popular dual H-Bridge L298 from ST. Motor supply 7V To 46V DC, Load 2Amp Each Channel.

FEATURES

• Motor supply V2: 7 to 46 VDC
• Logic Supply V1 : 5V DC
• Input Signal: Enable, Dir. , PWM
• Board Provides Current Feed Back ( On Board Shunt Resistor)
• Control Logic Input: Standard TTL logic level
• Output DC drive to motor: up to 2A + 2A
• External Diode Bridge for protection
• On Board 5V Power LED
• On Board Motor Supply LED
• 10X Box Header Connector for Inputs and PWM
• Header Connector For Logic Supply
• Screw Terminal for Motor Connections
• Screw Terminal For Motor Supply

SCHEMATIC

PARTS LIST

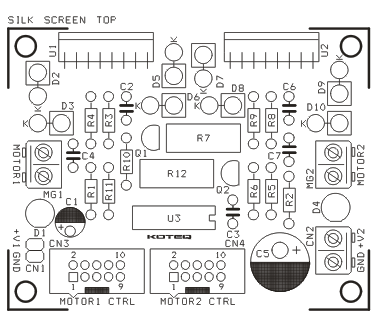

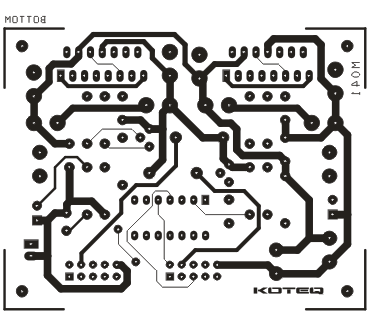

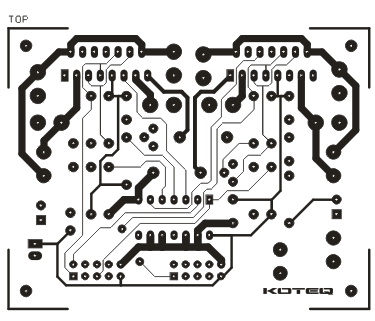

PHOTOS
