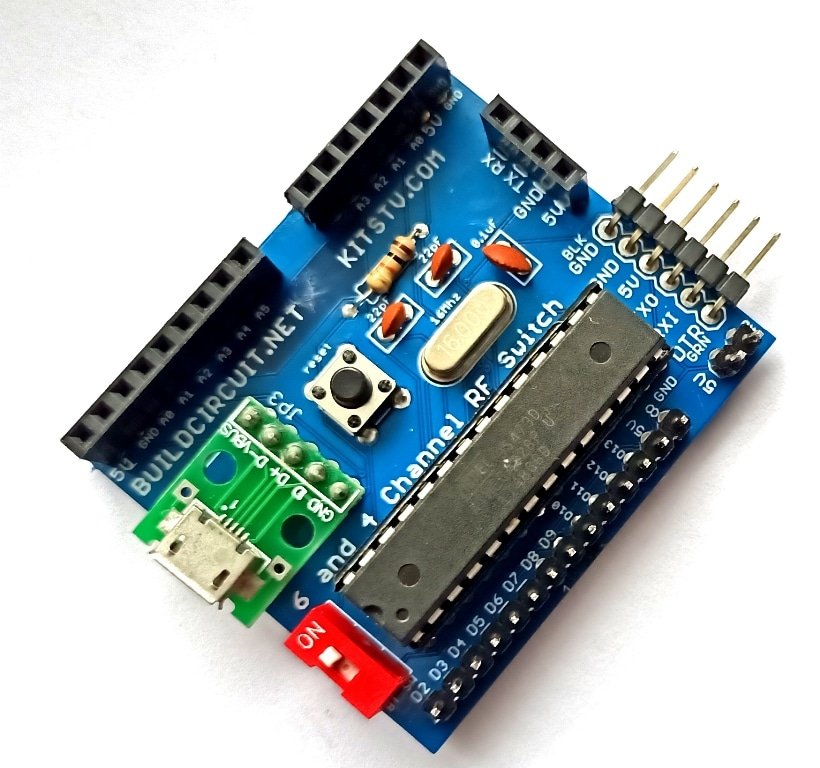

BTRF kit for testing Bluetooth and RF modules

SKU: BC-88645 Categories: ,

US $8.95

( 0 reviews )
  • This is a basic Arduino board with 12 digital ports that can be controlled with Bluetooth and RF modules
  • Basic tester module for Bluetooth module and 4 & 6 channels RF modules
  • Can be tested with several Android Apps for Arduino-Android communication

6 in stock



  Ask a Question
Add to wishlist

Description

NOTE: The package includes only the BTRF module. Bluetooth module, RF modules, and FTDI basic modules are not included.

This is a basic device for testing Bluetooth and 4 & 6 channels RF modules.

a. Bluetooth module

b. 4 Channels RF remote control and receiver

c. 6 Channels RF remote control and receiver (Not available at BuildCircuit Store)

The module is basically an Arduino board that can be programmed using an FTDI basic breakout board. There are 3 headers for Bluetooth module and RF modules. Simply, insert the modules to be tested into the headers and test them.

Schematic:

Apps for testing the Bluetooth module

There are hundreds of Apps for Android-Arduino communication in the Google Play Store. We have selected 4 excellent apps that can be used with this module. The following video shows how you can assemble the kit and use it for testing the Bluetooth as well as RF modules.

You can see all the images on Flickr

Package includes: All the components required to build the BTRF tester module (the Bluetooth module and RF modules are not included)
