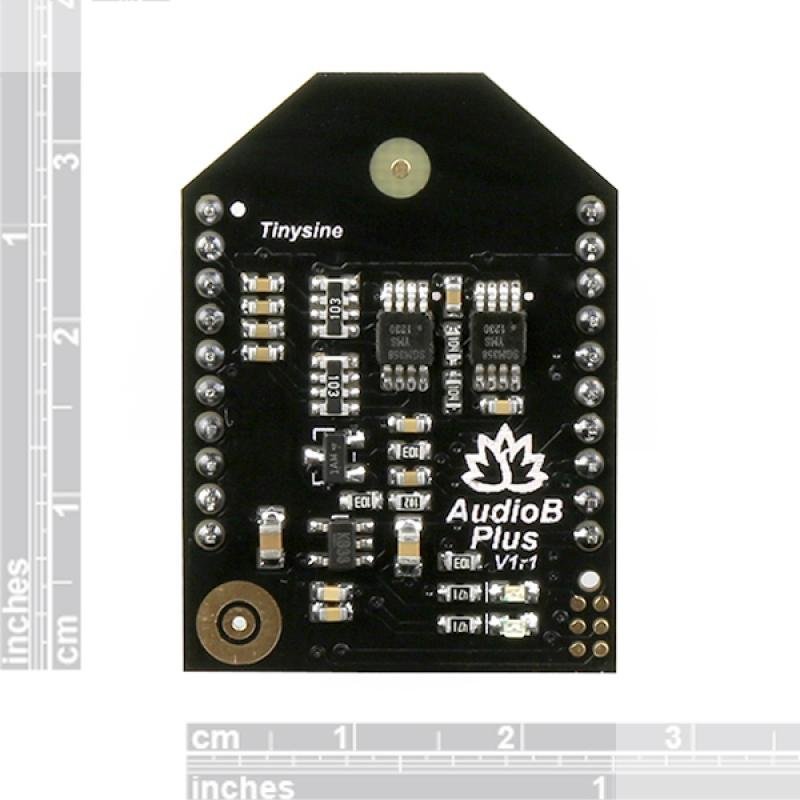

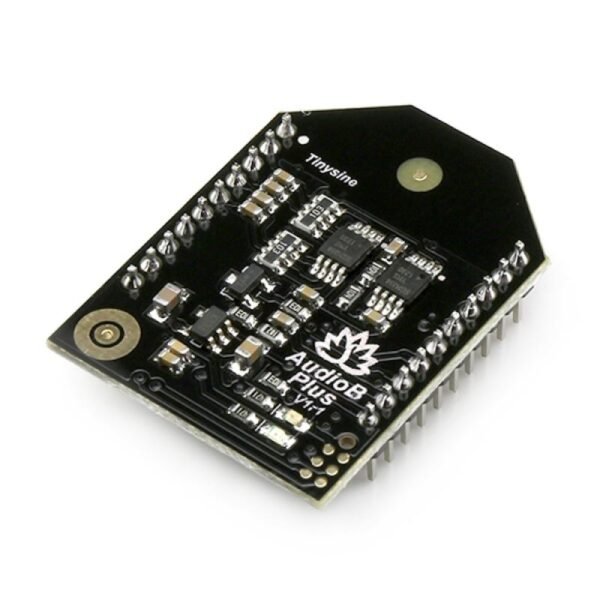

Audio B Plus Bluetooth Audio Receiver Module

SKU: G55F28765D1791 Categories: ,

US $9.95

( 0 reviews )

200 in stock



  Ask a Question
Add to wishlist

Description

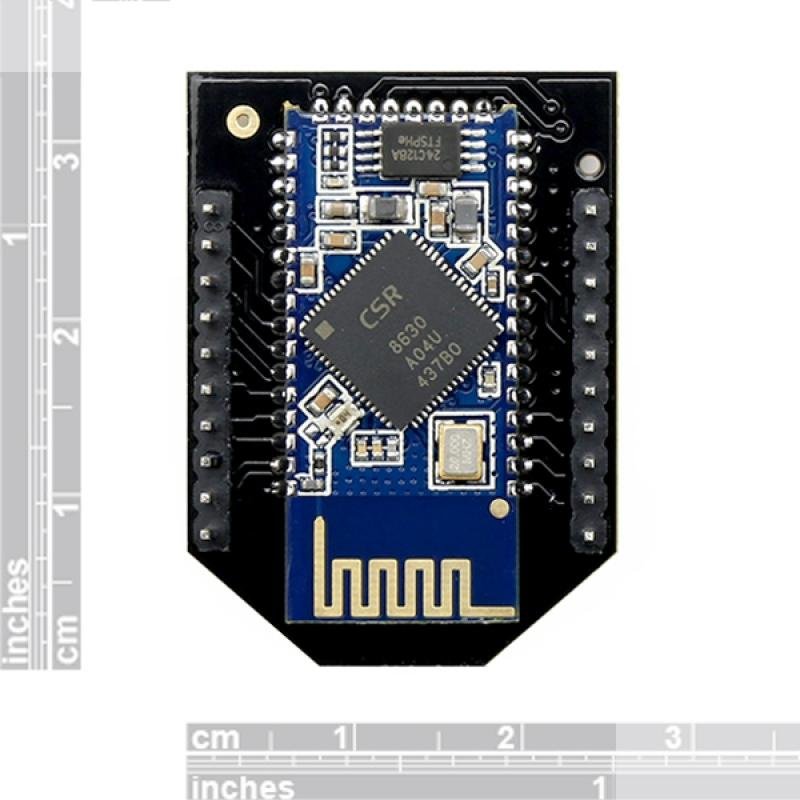

If you want to build a simple Bluetooth based amplifier board, Audio B plus Bluetooth audio receiver can be a good choice for your project. This is a Bluetooth 4.0 stereo receiver board. It is based on CSR8635.

We have used 2×10 2mm space male┬ábreakout pins. You can integrate it to your project easily.

 Single-ended signal output with Audio amplifier

Single-ended signal output with headphone/small speakers

Differential signal output

Microphone input

How to use:

  • Quick press S2 to switch to go the previous song, long press to reduce the volume.
  • Quick press S3 to switch to the next song, long press to increase the volume.
  • Press S1 to play or pause.
  • If there is an audio output, MUTE pin will be high level, otherwise, will be low level.

Features:

  • Bluetooth 4.0
  • HFP V1.6
  • HSP V1.2
  • A2DP V1.2
  • AVRCP v1.4
  • Support for smartphone application(APPs)
